Standard Tooling for CNC Machines
Tooling Details for CNC Machine
Here are the recommended Tooling details when setting up a new CNC Machine
with CabMaster Software.
NOTE: All feeds, speeds and tools are just general
recommendations, please confirm more specific details with your tooling
supplier of choice. Feeds and Speeds may also vary depending on the CNC and
tooling in use.
Recommended Tooling:
Tool: | Usage: |
9.5mm 3 Wing Compression Cutter | General HMR Cutting |
9.5mm 2 Wing Compression Cutter | General MDF Cutting |
8mm 2 Wing Down Spiral Cutter | Tongue & Groove and Pocketing |
80mm Surfacing Cutter | Decking Table |
12.7mm 3 Wing Compression Cutter | Bench/Counter Top Cutting |
90º Deg V Cutter | Engraving, V Grooves, etc |
Profile Cutters | Door Profiles |
3mm Drill | Assembly & Location Holes |
| 5mm Drill | Assembly & Shelf Holes |
8mm Drill | Hinge Plates |
10mm Drill | Hinge Plates |
20mm Bore | Cam Holes |
35mm Bore | Hinge Cup Holes |
Tool: | Feedrate: | Speed (RPM): |
9.5mm 3 Wing Compression Cutter | 20,000mm/min | 18,000rpm |
9.5mm 2 Wing Compression Cutter | 14,000mm/min | 18,000rpm |
8mm 2 Wing Down Spiral Cutter | 5,500mm/min | 18,000rpm |
80mm Surfacing Cutter | 7,000mm/min | 14,000rpm |
12.7mm 3 Wing Compression Cutter | 20,000mm/min | 18,000rpm |
90º Deg V Cutter | 3,600mm/min | 18,000rpm |
Profile Cutters | ***************** Speak to | Tooling Supplier ********** |
3mm Drill | 2500mm/min | 4500rpm |
5mm Drill | 2500mm/min | 4500rpm |
8mm Drill | 2500mm/min | 4500rpm |
10mm Drill | 2500mm/min | 4500rpm |
20mm Bore | 2000mm/min | 4500rpm |
35mm Bore | 2000mm/min | 4500rpm |
Recommended Tooling
Position in CNC Machine
Spindle

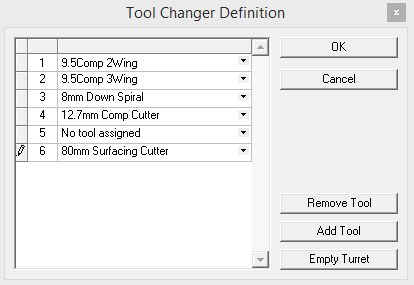

On a CNC Machine with only 6 Tooling Positions, we would recommend setting
up the tooling in the following positions:
These would also be setup in the same positions in EzyNest.

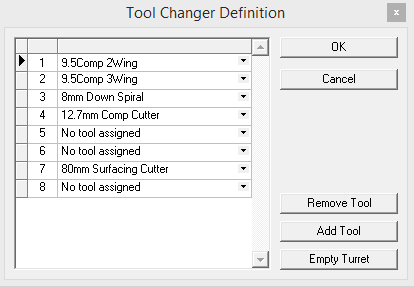

On a CNC Machine with 8 or more Tooling Positions, we would recommend
setting up the tooling in the following positions: (Only change from 6 tool is
80mm Surfacing cutter position)
These would also be setup in the same positions in EzyNest.
Drill Banks
Depending on the number of drills and the availability of Left / Right
hand tooling.
We would usually setup the less common drills, such as 3mm, 8mm, 10mm
& 35mm first closer to the outsides, then fill as many 5mm drills together
for gang drilling of shelf holes.

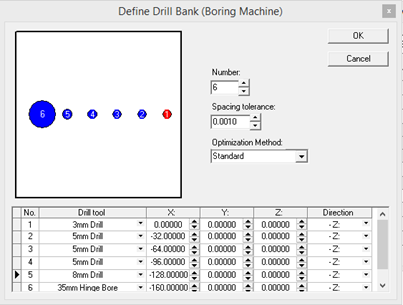

On a CNC with only 6 Drills, we would include 3 x 5mm drills together in
positions 2 – 4 to give the most efficient gang drilling options.

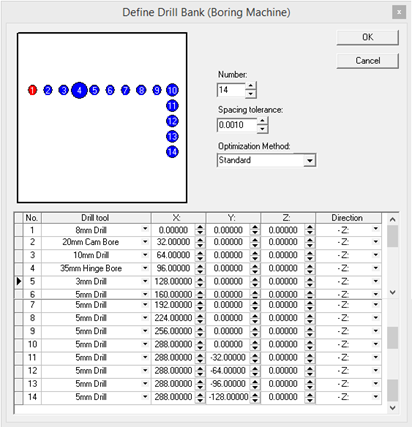

As the CNC gets a greater number of drills available, we continue to add
in more 5mm Drills, until we eventually get 5 x 5mm drills going in both the X
and Y directions of the Machine.
TIP: Click the attachment to download this HowTo to your desktop as a .pdf
