Pricing of Board Material (By Area) and Hardware

Area Pricing for Board Materials

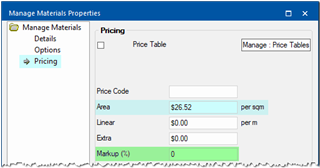

Use Materials Manger to set up the Area price rate against all appropriate materials and save. This could, for example, correspond to our suppliers’ price list.

You can also include an Additional mark-up percentage, for example, a 5% mark-up can be added to account for the cost of freight which you may bear.

NOTE: It is important to note that the mark-up here should not be confused with the mark-up in the Pricing/Mark-ups page. The mark-up in the Pricing/Mark-ups page will be applied to the total cost within the Materials Manager.

Hardware Pricing

Selecting What to Price

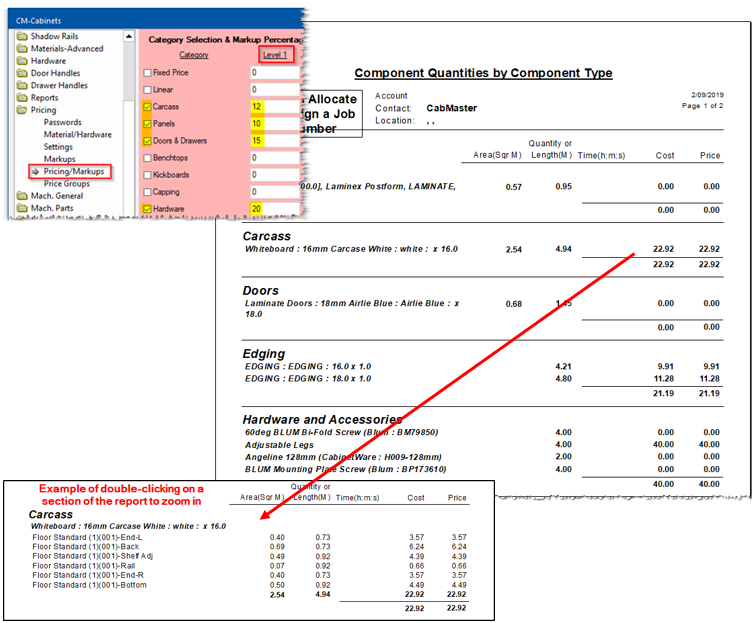

Select the categories that will be priced through the Pricing/Mark-ups page of the Pricing category of catalog properties, as per image to the right. The Levels give the ability to mark-up the prices and are percentages (%).
Once complete, save the catalog and restart the application.

Hardware From Manager

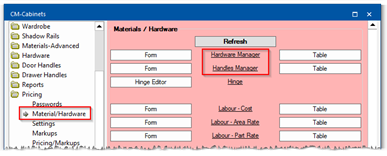

Select the Hardware (Form or Table) from the Pricing/Mark-ups page of the Pricing category of catalog properties.

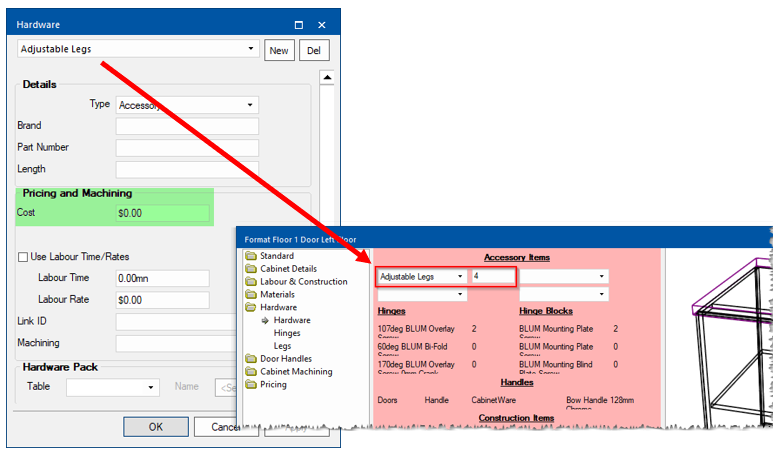

Add the prices i.e. Cost against the appropriate Hardware items shown below left. The Hardware items can be edited, removed and added to suit local requirements. Some customers have found it more convenient to package hardware together rather than have a big list of individual items.

NOTE: The Pulls (Handles) are catered for in a separate table.

Choose the hardware associated with a cabinet use the Hardware page on the Materials category of each cabinet in the catalog.

Test

The breakdown of prices can be tested by running the Quantities report against a drawing. This report allows you to zoom in on each category to get greater levels of detail (look for the mouse pointer becoming a magnifying glass as you hover over parts of the report, then double-click).

TIP: Click the attachment to download this HowTo to your desktop as a .pdf
