Pricing Drawer Runners

Pricing Drawer Runners

Pricing Drawer Runners

Drawer Runners are grouped into one of three ‘Runner Groups’ and accessed from the Pricing category:
  1. Standard
  2. Metal Standard (includes Metabox) and
  3. Metal Premium (includes TandemBox and Innotech)
Each of these groups has its own construction rules and tables. A drawer runner file is required for each runner type, which is the reason why you select the runner type from the dropdown on the left side. Within this file there is a row for each length in which the runner is available.

The Pricing category allows you to select the choice, detail, pricing and machining data for drawer runners.

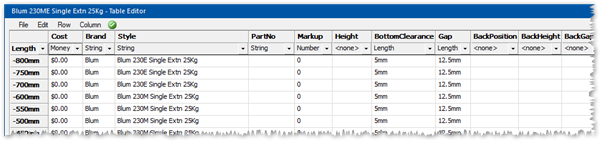

To change the “Cost” you will need to use the ‘Edit Table’ button which will open the selected table as per example below. The first column contains the cost price for each runner length. There is also a “Markup” column.



Runner Sets can be accessed from the Hardware category, Managers page and allows the creation of any number of sets of runners for each group, along with the heights at which they should be used (up to 5 runners per set).

The Runner sets themselves are held in tables in …Table/RunnerSets/… accessed from the Hardware category.



There are 5 tables -for more details see CM-Cabinets Help Topics:



      1. RunnerSet1.qlt - for Standard
      2. RunnerSet2.qlt - for Metal Standard
      3. RunnerSet3.qlt - for Premium Metal
      4. RunnerSet4.qlt - for Basket
      5. RunnerSet5.qlt - for Corner



TIP: Click the attachment to download this HowTo to your desktop as a .pdf
