How to use Vector Fonts in EzyNest/EnRoute

How to use Vector Fonts in EzyNest/EnRoute

How to draw Vector Font (Single Line Font) with EzyNest (or EnRoute)

Most fonts used in EzyNest to draw text are a block format, but there are Vector fonts provided in the installation folder. These will need to be manually installed.

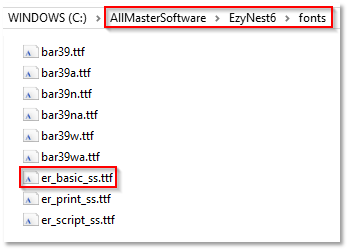

If we go into this folder, we find a few different Vector Fonts (or Single Line Fonts) that are available for use. Right click on the required font and select “Install”. This will load it into Windows Fonts which will make this available for EzyNest to use.

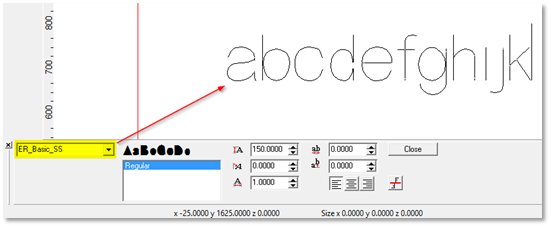

Now when we return to EzyNest, we can now use “Draw Text” and use the newly installed fonts.


TIP: Click the attachment to download this HowTo to your desktop as a .pdf
