How to Use Customized Shaker Doors Tables

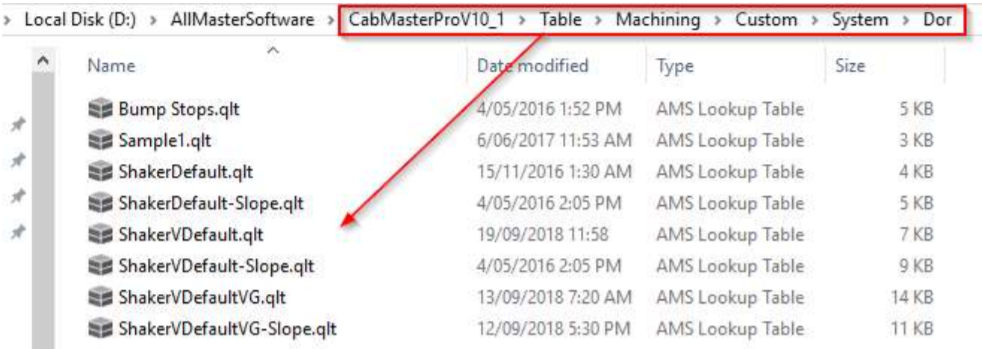

Step 1: Firstly you will need to make sure your customized Shaker tables are located in the correct location for CabMaster to read the System Tables, this will be found in the CabMaster folders “\Table\Machining\Cystom\System\Dor” see image below for example.

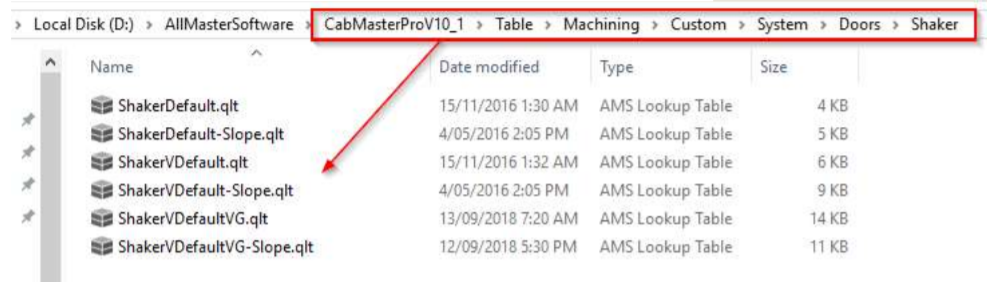

NOTE: Previously in older versions the of this setup the Shaker tables were located this location; “\Table\Machining\Cystom\System\Dor”, see image below.

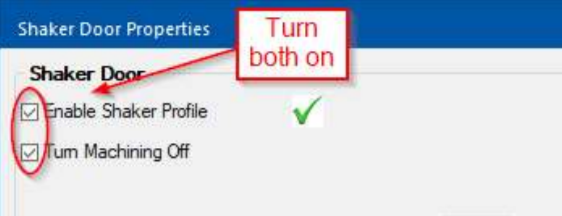

Step 2: As the door is now not using our Shaker profiles you will need to let the System Tables turn on instead, you will need to deactivate our machining of the Shaker Doors existing area. See Image below.

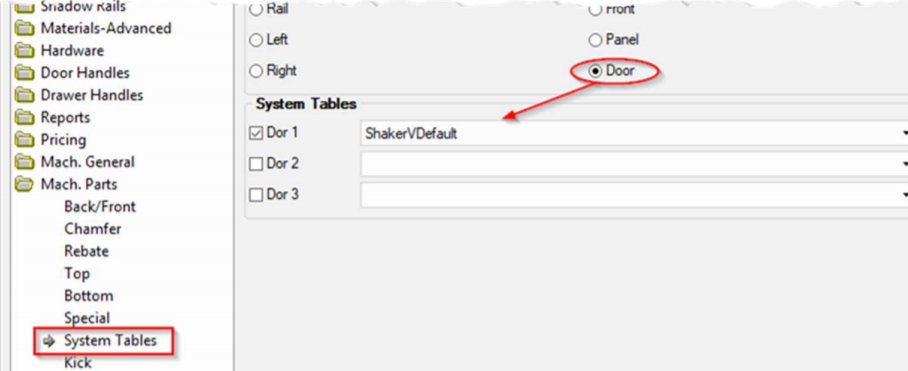

Step 3: You will need to turn on the System Tables in the ‘Mach. Parts’ under ‘System Tables’ for the “Door” see the image below.

NOTE: You can do this at the Catalog level to make this change for every new drawing.

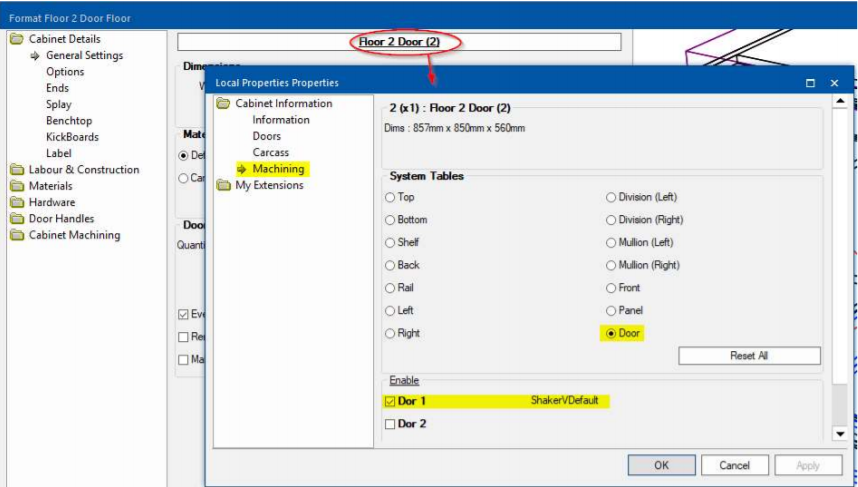

Step 4: You can also turn the Shaker Profile off at the cabinet level via the Dialog button at the top of the cabinet.

TIP: Click the attachment to download this HowTo to your desktop as a .pdf
