Elevation View Styles

Elevation View Styles

One of the new options in CabMaster v11.0 is the ability to change Elevation View to show cabinets in wireframe, hidden or solid view.

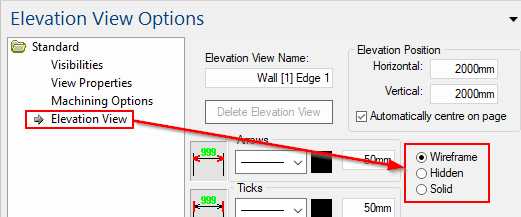

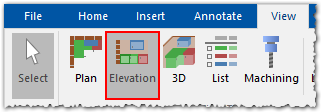

As shown above, go to the View menu and press the Elevation button to change to Elevation View. Right-click on the page and select Options (or press [F9] on your keyboard), then click on the page Elevation View. From there, you will see the Wireframe/Hidden/Solid options to the right:

Wireframe shows the shape of each cabinet, along with indications of the thickness of the carcass and shelves:

Example of Wireframe view

Hidden shows the shape of each cabinet, but does not show anything behind the doors:

Example of Hidden view

Solid shows the shape of each cabinet, with colours of the doors and kickboard, but does not show anything behind the doors. The colours are a plain (non-textured) single-colour representation that is based on the colour of the doors and kickboard that you have selected:

Example of Solid view

TIP: Click the attachment to download this HowTo to your desktop as a .pdf
