Creating Capping Profiles

Creating Capping Profiles

Summary

This document will guide through the creation of new Capping Profiles, using the Horizontal Panel tool.

Requirements

CabMaster Pro V11 or later (Developer license only)
CabMaster Pro V12.0.0.78 or later (all licenses)

Steps

1. Drawer the profile with the Horizontal Panel. The Movement settings are useful to set each section measurements.
Once the box shape is drawn out, you can then Curve any of the edges that require a radius applied.
AlertNote: When creating the profile, multiply all real measurements by 6 (ie; 45mm x 6 = 270mm)

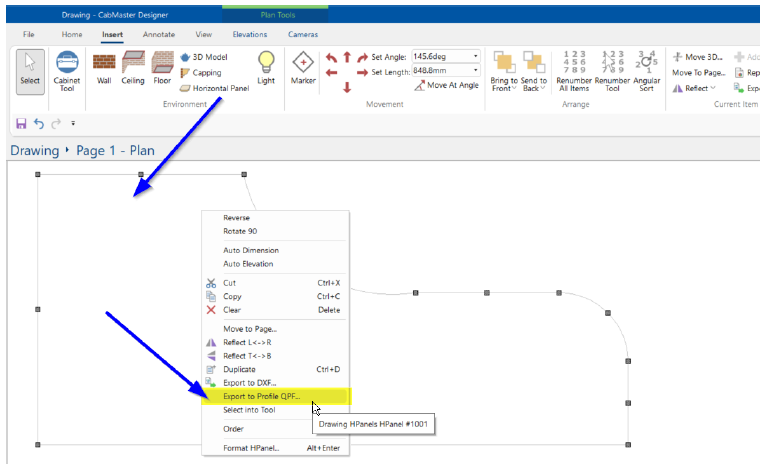

2. Right click the Horizontal Panel and select the option Export to Profile QPF....

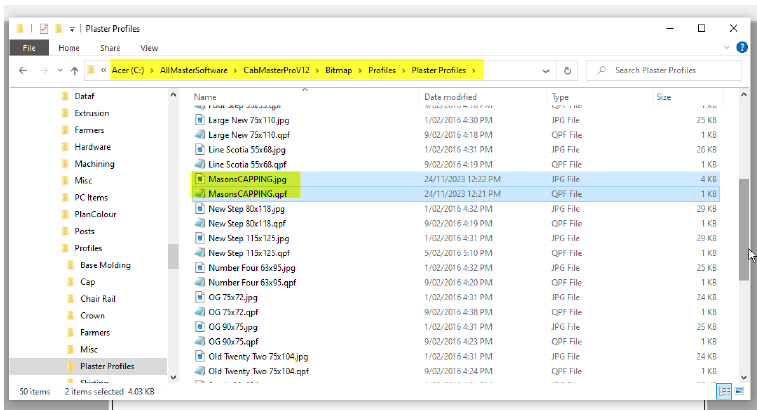

3. Save the QPF to ...\Bitmap\Profiles\Plaster Profiles\
4. Screenshot the profile and save the screenshot with the same name as the QPF into the same folder.

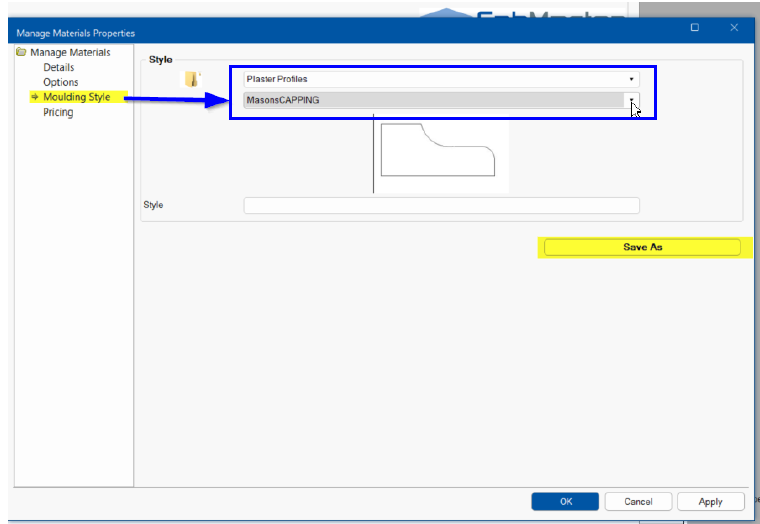

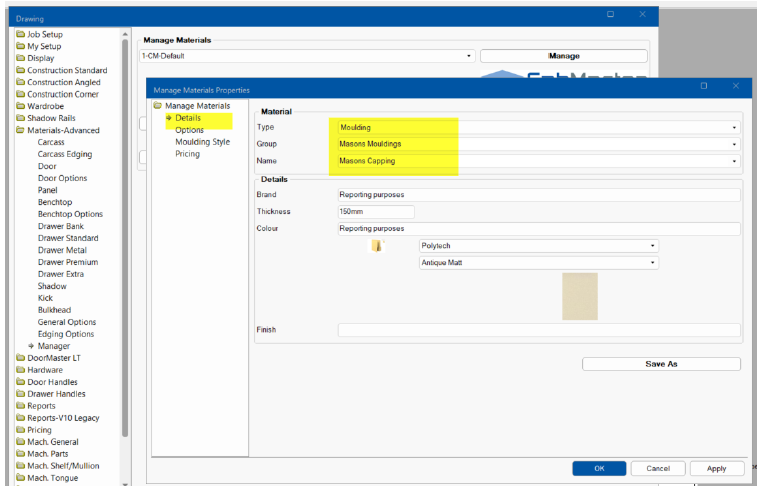

5. Create a Moulding Material in Materials Manager and use the new QPF file you have now saved.
